Superbox

If you are looking for competent partners and experts in the field of measurement and control technology, then HACO is the right partner for you. With us you get a large and high quality product range, which is tailored to your needs and goals.

Superbox

Superbox

INSTRUMENT ENCLOSURE READY TO INSTALL

BASIC DESCRIPTION

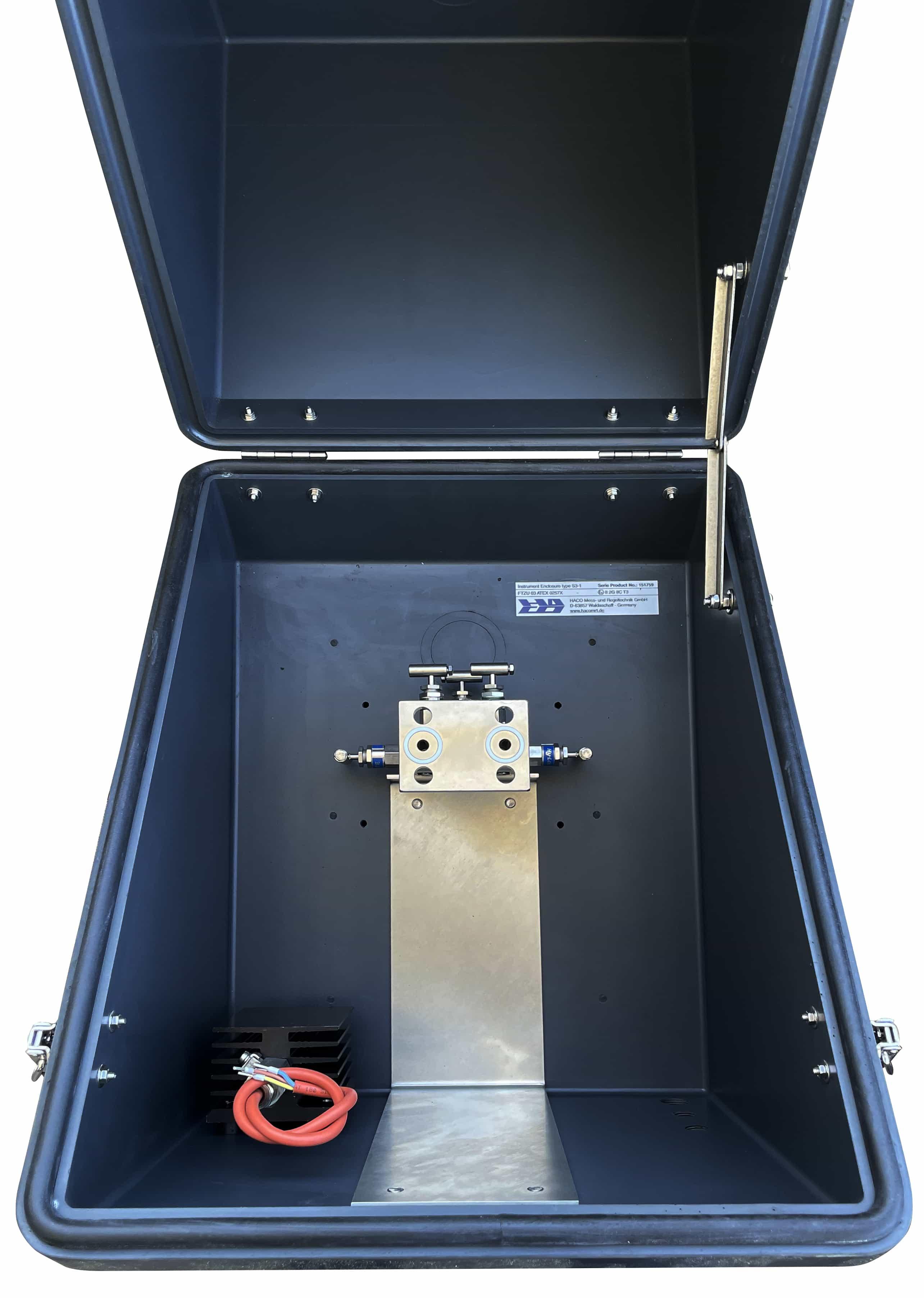

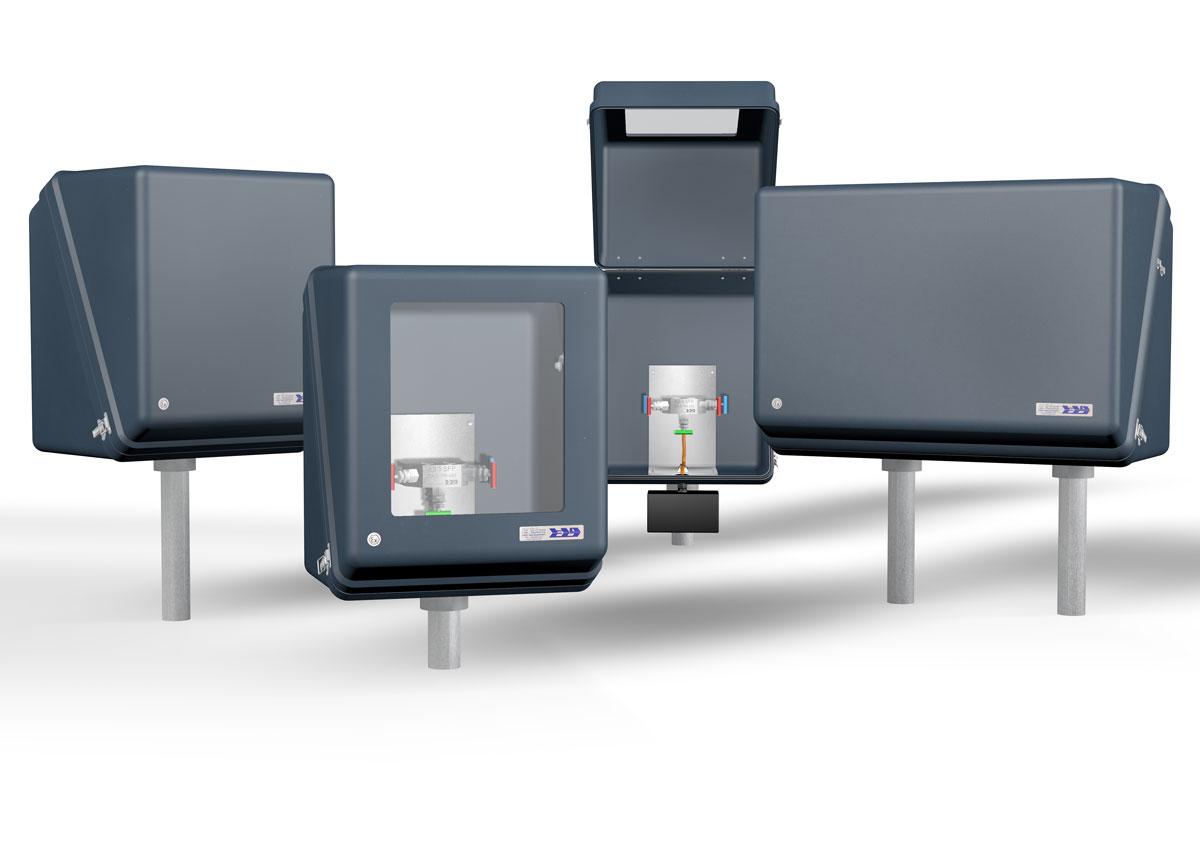

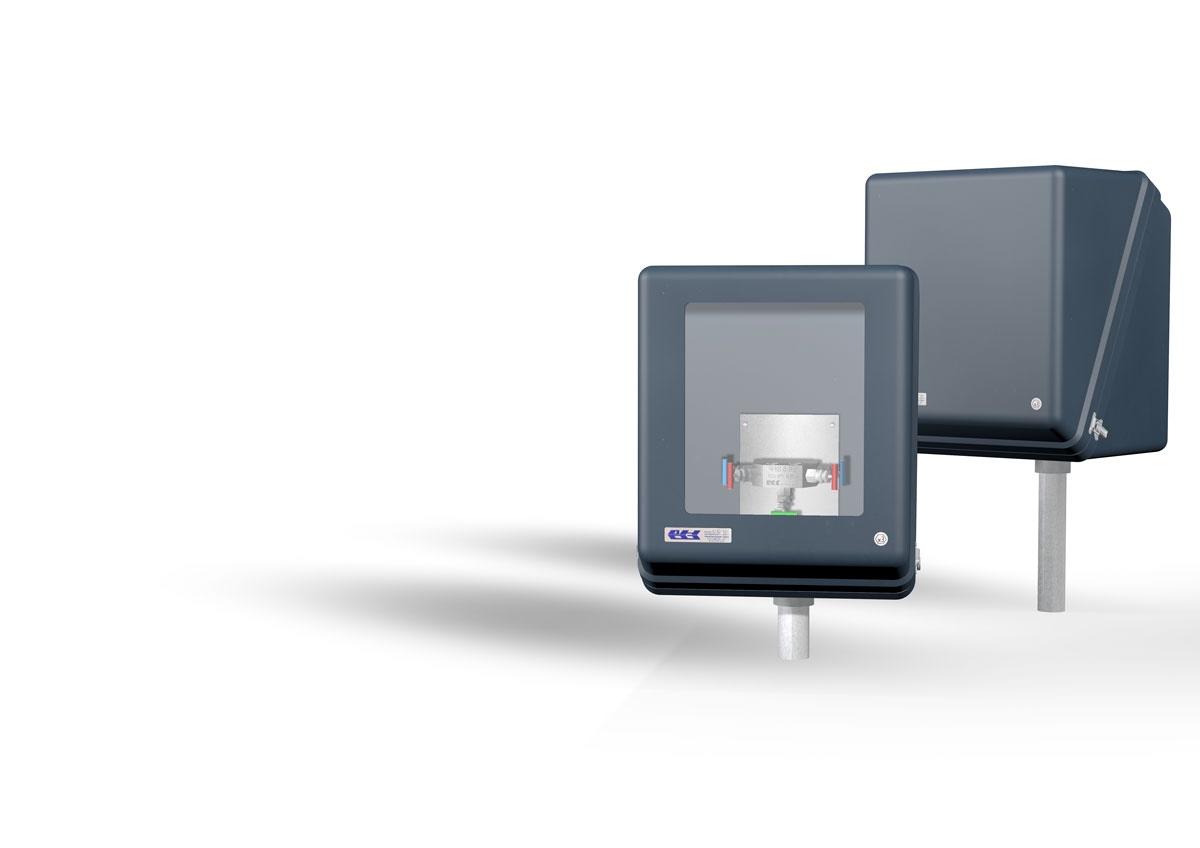

HACO SUPERBOX Enclosure type S3-1 and S6-1
Made from „PURSI“ (basis of polyurethane)

The high-performance material PURSI is corrosion resistant, resists almost all chemicals in industrial environments, acids, and alkalis. Very stable, impact resistant, fire retardant.

The PURSI material and the thickness of the enclosure wall (min.15mm) offer perfect thermal insulation for very low ambient temperatures, additional insulation is NOT required.

PURSI enclosures are moulded into precise metal matching moulds.
The two-part enclosures are divided diagonally = easy opening, easy access to the installed instruments.
Surface with a satin gloss external (UV resistant) and internal finish
Standard colour dark grey similar RAL7016

Standard Design

  • All hinges, toggle fasteners, tops, stays and screws are from stainless steel
  • Inside sealing of the two enclosure parts by high-quality neoprene gasket
  • Surface resistance according to 2014/34/EU (ATEX & EAЭС)
  • Protection classification: IP 65
  • Standard design temperature of the enclosure: -40°/+60°C

Dimension

500 (height) x 400 (depth) x 400 (width) TYPE S3-1
500 (height) x 400 (depth) x 700 (width) TYPE S6-1

WHAT is the HACO
“ENCLOSURE SYSTEM READY FOR INSTALL”?

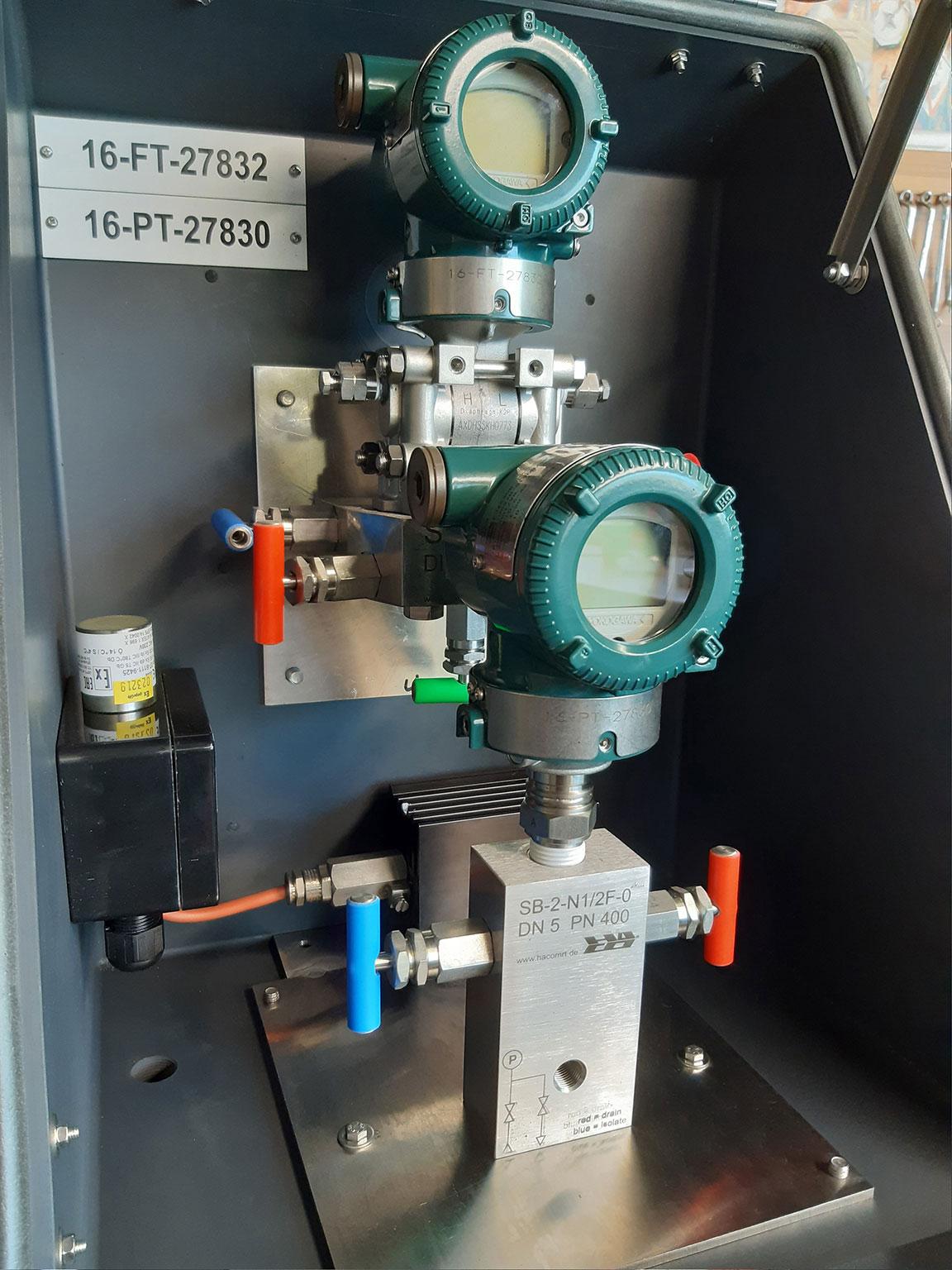

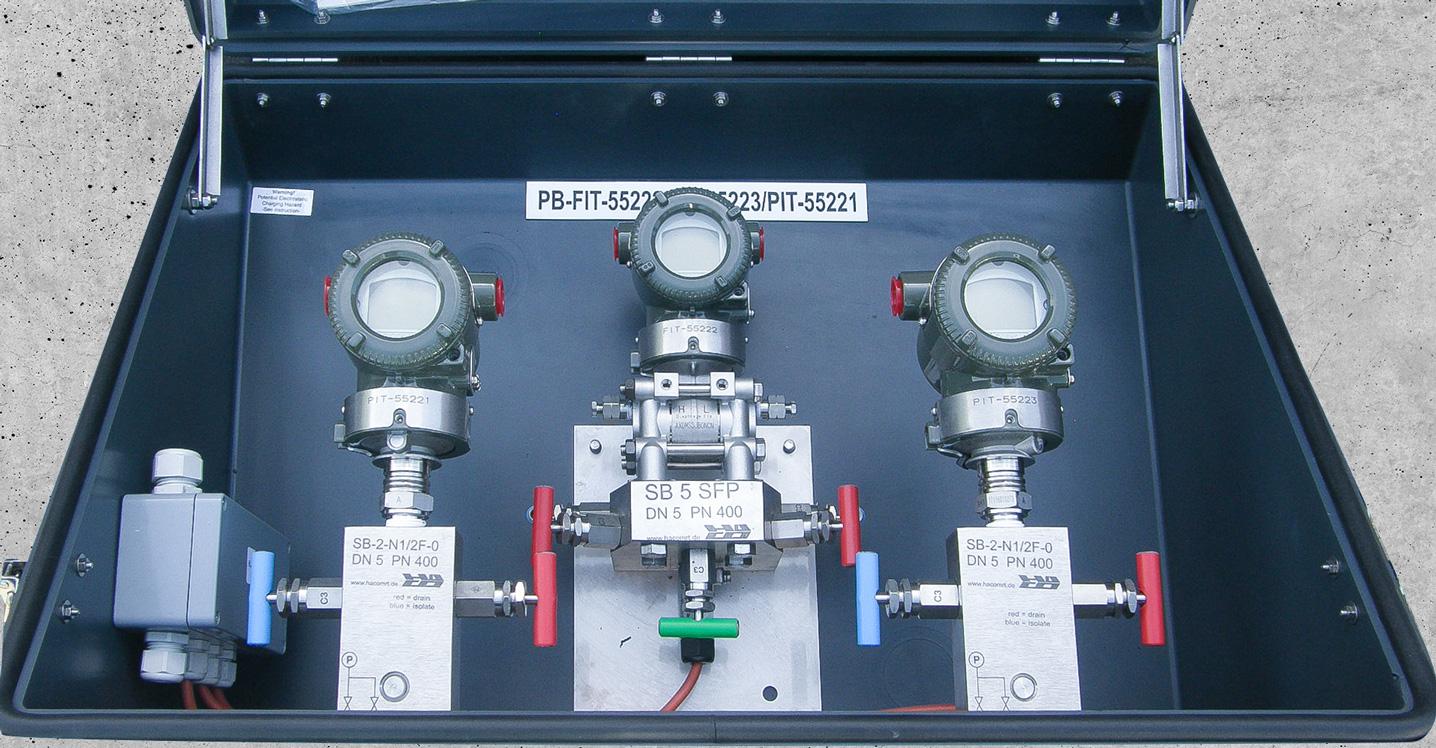

SUPERBOX enclosure & SUPERVALVE manifold & SUPERHEAT heater
HACO SUPERVALVE manifolds Serie “SB” are designed for mounting to the enclosure wall or bottom, without any holders & 2” pipe mounting.
The SUPERVALVE manifolds are heated directly by a HACO self-limiting SUPERHEAT Exd heater type “SH”. We handle every step for you, from your “hook up” to the finished enclosure system.

HOW DO YOU BENEFIT FROM THIS?

HACO offers you more than 30 years of experience in the field of measuring and regulation technology, the perfect solution for your most demanding applications, including testing and certificates.

Superbox
Superbox
Superbox
Superbox
Superbox

SUPERHEAT

EEx d HEATING type SH-XX

Self-Limiting Electric Manifold Heater SUPERHEAT is designed to be attached directly screwed into manifolds. The heater heats the device by heat conduction. This is the easiest, safest, and economical method of freeze protection or temperature application of funds.

SUPERHEAT is developed together with patented SB-Manifolds.
It is the best way to heat manifolds + transmitter in the first place for high temperatures from +40° up to +90°C without heating of the electronic part of the transmitter. The production of the heat on the place where the heat is needed, right in the middle of the manifold with direct conduction, the power consumption is very low. With outside temperature –20°C needs SH-40 approximately 4W to keep transmitter + manifold frost free.

A conduction heater requires 90% less power than a finned convection heater, as the heat conduction qualities of metal are lot better than those of air. The air surrounding the manifold and transmitter in the enclosure serves as additional insulation.

  • Optimal temperature of medium
  • Very low electricity consumption (circa 5 W)
  • Overheat protection of transmitter

ORDER TYPEs: SH-40, SH-60, SH-90

(Delivery possibility included junction box and thermostat)

Ignition protection class II 2G Ex db IIC T3 Gb according to FTZÚ 03 ATEX 0258X
and EAC Certificate RU C-DE. МЮ62. B.01082/19

Nominal voltage 240V, Nominal power 100W, 50Hz Ambient temperature range -60° to +140°C, Tamb = -50°C to +60°C Material of Body Stainless Steel Connection cable* SILFLEX SiHF 3G x 0,75mm (Standard length 1m /other lengths upon inquiry)

Superheat
Superheat
Superheat

SUPERVALVE

DIRECTLY HEATED BY SUPERHEAT MOUNTED IN SUPERBOX

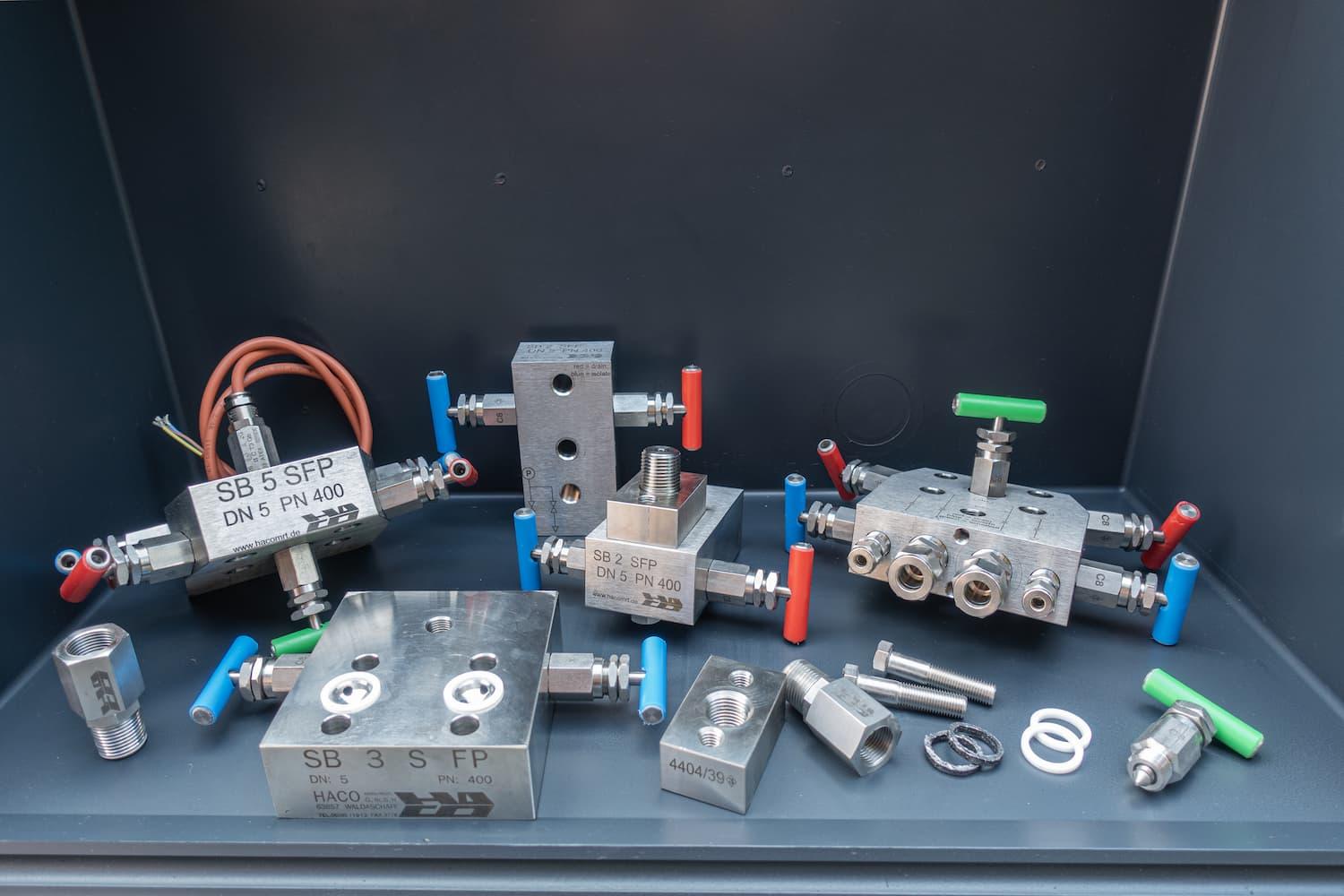

HACO MANIFOLD SERIES “SB”

Precise equipment for using in Oil, Gas, Refinery, Chemical and Power Plant industries

DESCRIPTION

HACO 2, 3 and 5-valve instrument manifolds are designed for mounting into HACO Enclosure Systems, without any holders or brackets directly to the enclosure wall by mounting plate.
For examples, please see part SUPERBOX.

MATERIAL

  • Manifold bodies and valves: Stainless steel 316/316L included certificate DIN EN 10204/3.1 optional according to NACE MR0175
  • Standard packing and sealing rings (flange connection) made from P.T.F.E., optional from Graphite for high temperature
  • Fixing bolts 7/16” UNF (transmitter flange) made from stainless steel, brass, or nickel-plated brass
  • Fixing bolts M8 (manifold x enclosure) made from stainless steel

PRESSURE & TEMPERATURE

All manifolds are tested on 600 bar
Maximal allowable working pressure: 400 bar at 38°C
Maximal allowable temperature: 200°C with P.T.F.E. packing and 600°C with Graphite packing

MANIFOLD TYPES

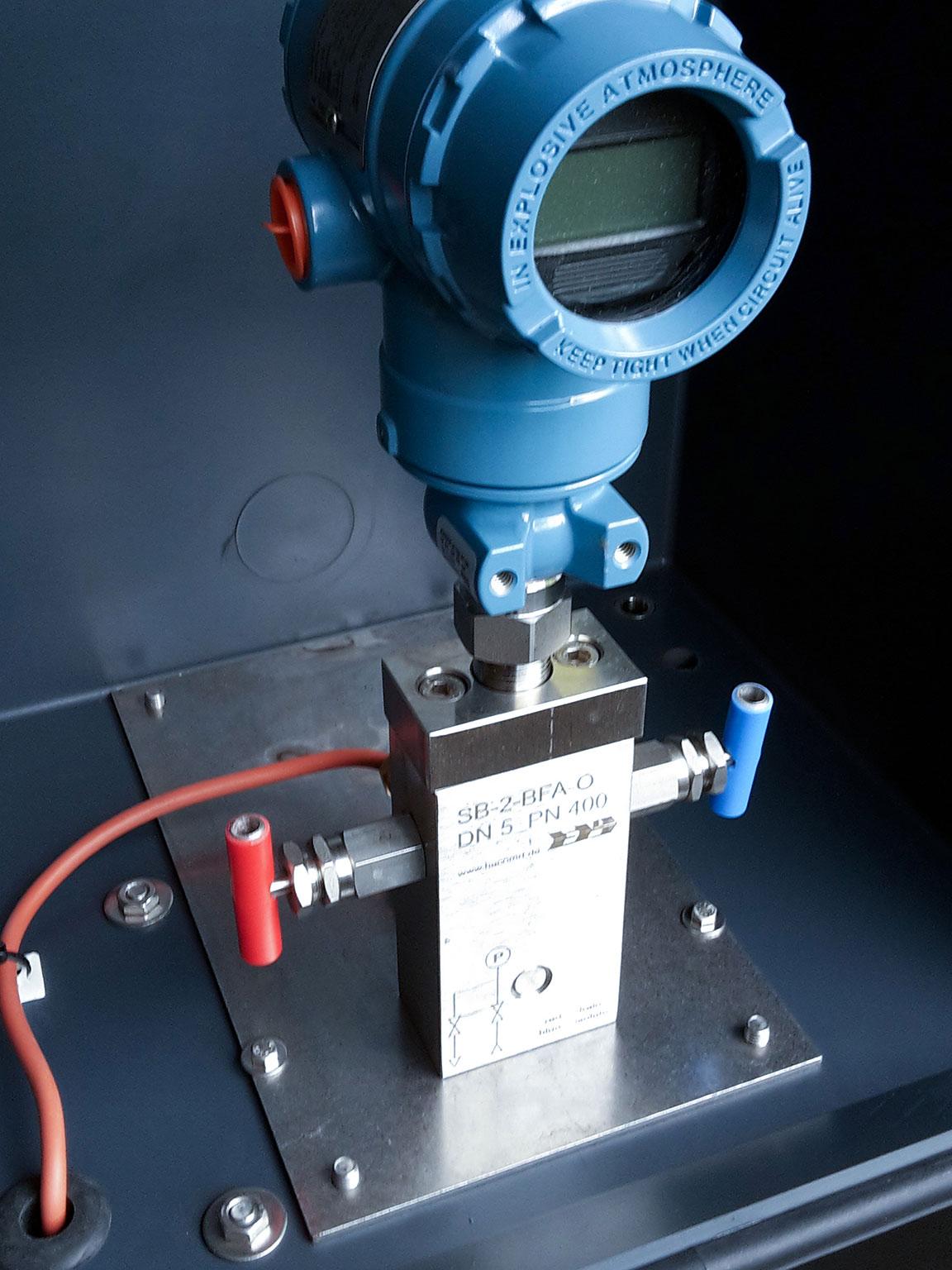

SB-2-XX
2-valve manifold for Pressure Instruments
Example of possible instrument connections:

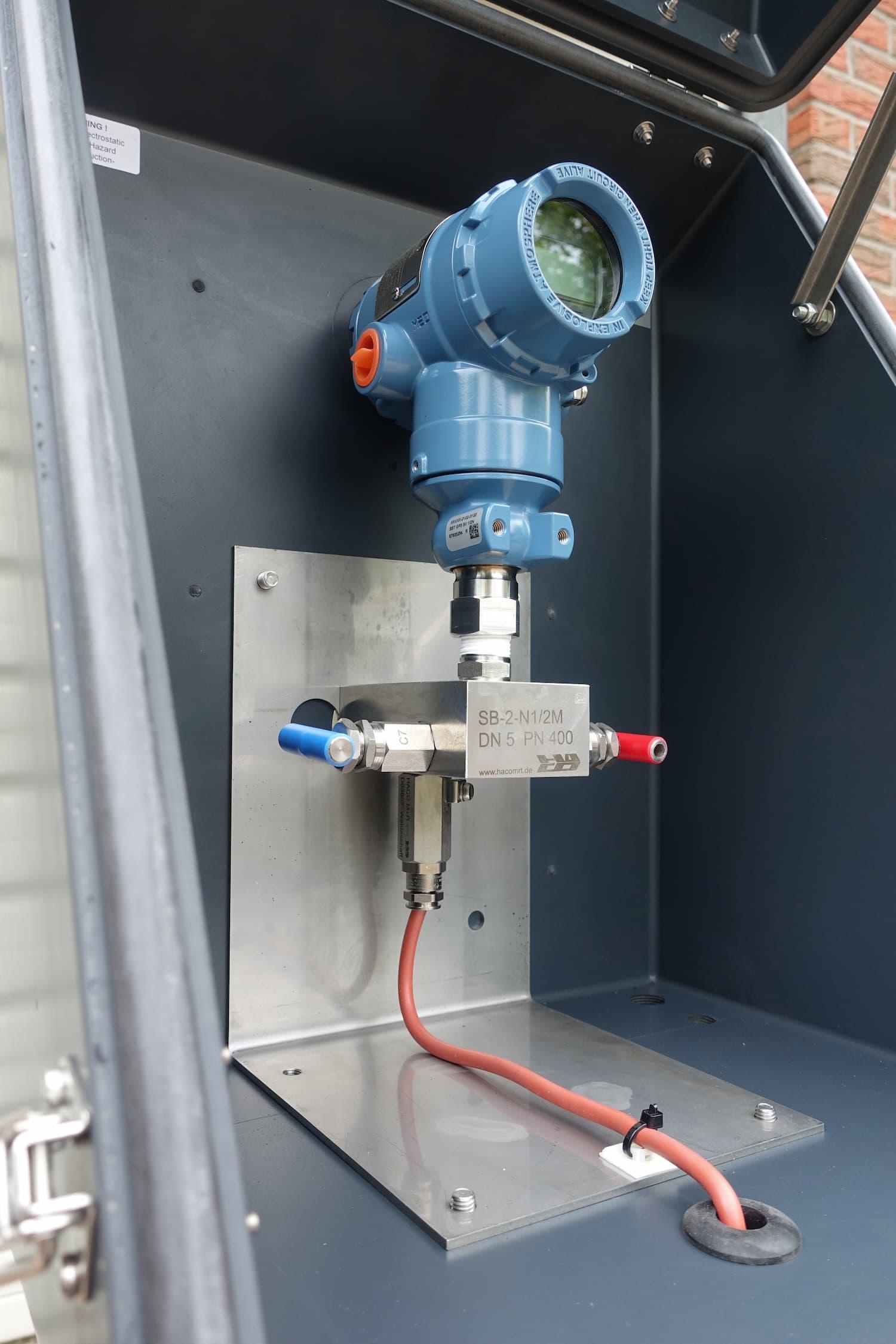

Flange = SB-2-SFP, male thread ½” NPT = SB2-N1/2M, female thread ½” NPT = SB2-N1/2F
Other mounting accessories: movement adaptors and flanges

SB-3-SFP
3-valve manifold for Differential Pressure Instruments

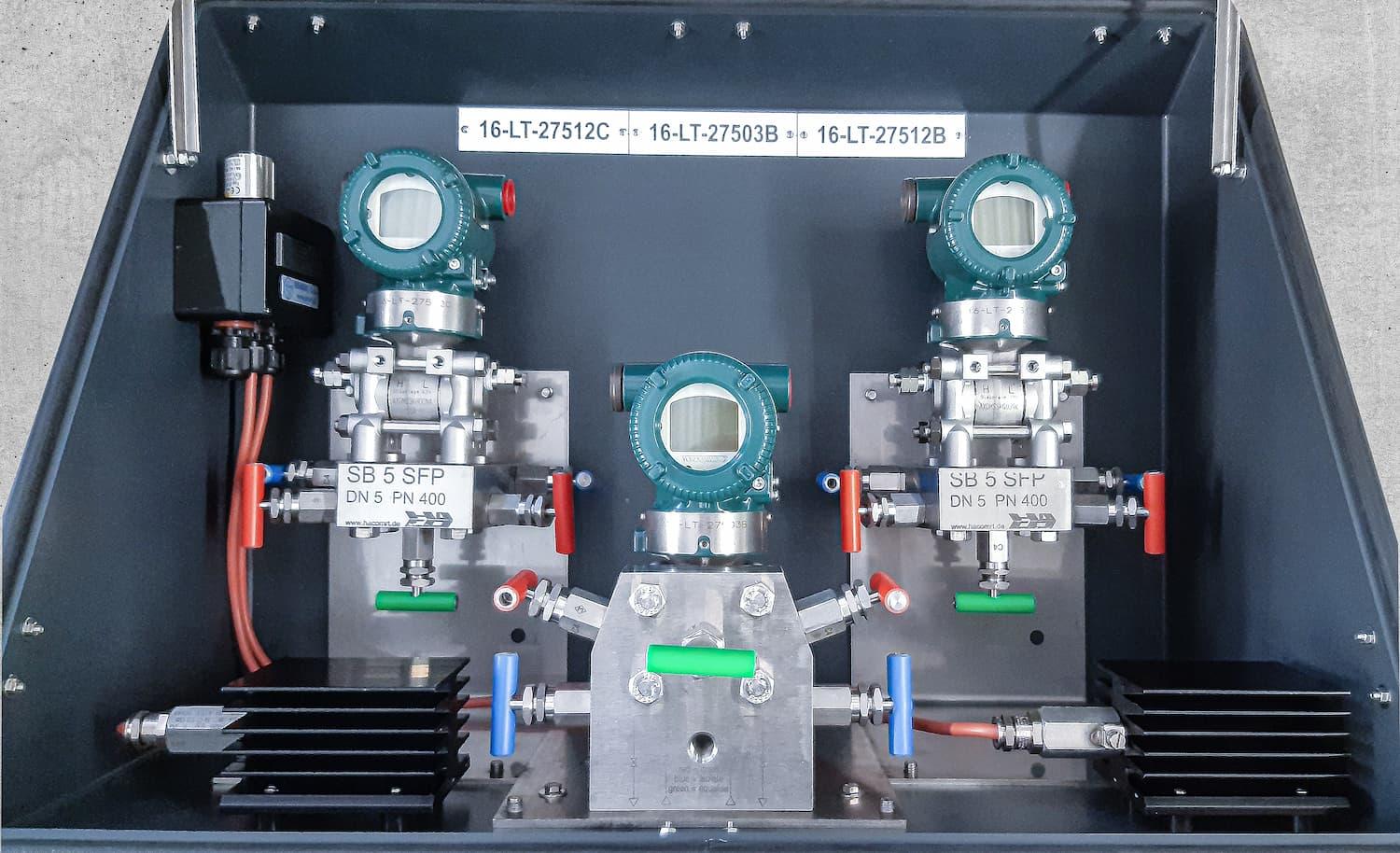

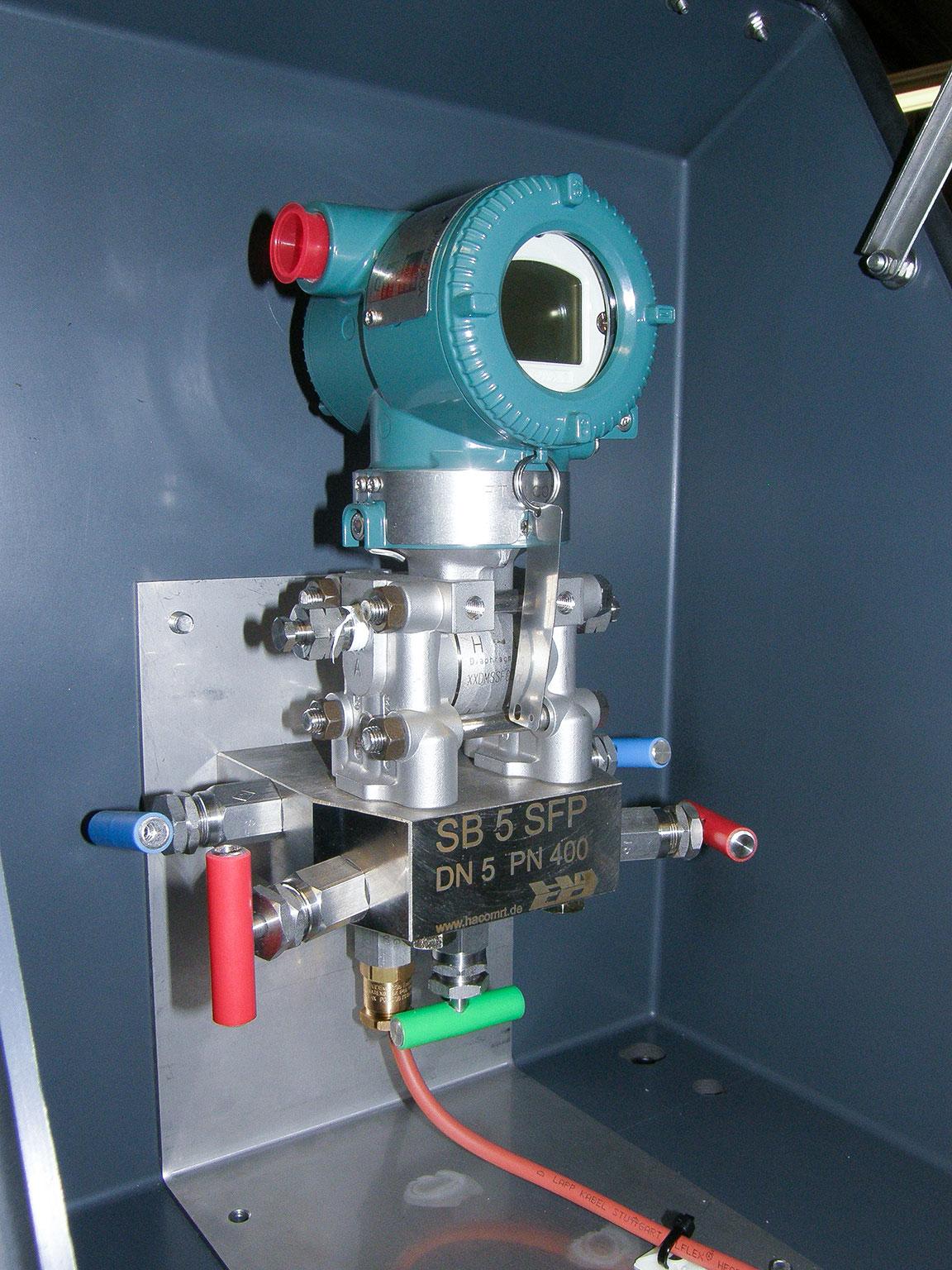

SB-5-SFP
5-valve manifold for Differential Pressure Instruments

For other types please ask

Supervalve

HACO by HY-LOK

QUALITY MEETS QUALITY

Hy-Lok Instrument Manifolds & HACO SUPERBOX
HACO protection boxes protect Hy-Lok manifolds and your measuring
instruments „Connect, protect, heat“

Hy-Lok Enclosure

Get more Information about HACO by HY-LOK by downloading this flyer.

Download flyer →

Certificates

HACO_ATEX0257_EnclosureShow details →
HACO_ATEX0257_Enclosure_2029Show details →
HACO_ATEX0258_HeaterShow details →
HACO_ATEX0258_Heater_2028Show details →
HACO EAЭС Certificate 2019-2024Show details →
HACO ISO9001-2015 in EShow details →
